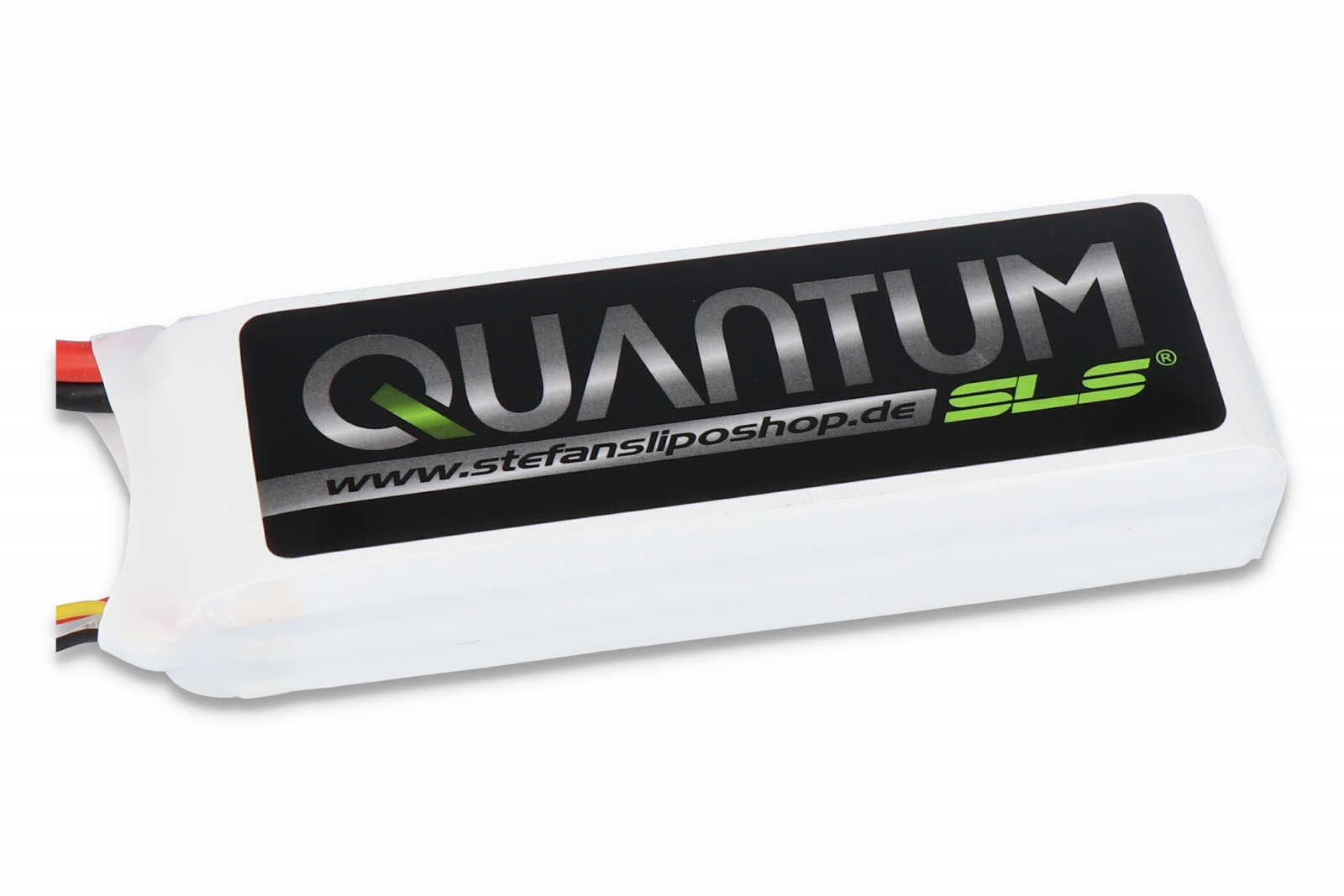

SLS Quantum 3700mAh 3S1P 11,1V 40C/80C
Technical Data:
- Voltage: 11,1V
- Configuration: 3S1P
- Capacity: 3700mAh
- Continuous Discharge: max. 40C (148A)
- Burst Discharge: max. 80C (296A)
- Charge: max. 5C (18,5A)
- Weight: approx. 294 Gramm (including Cable and Plug)
- Dimension: approx. LxWxH 137x43x23mm
- Balancer Plug: XH

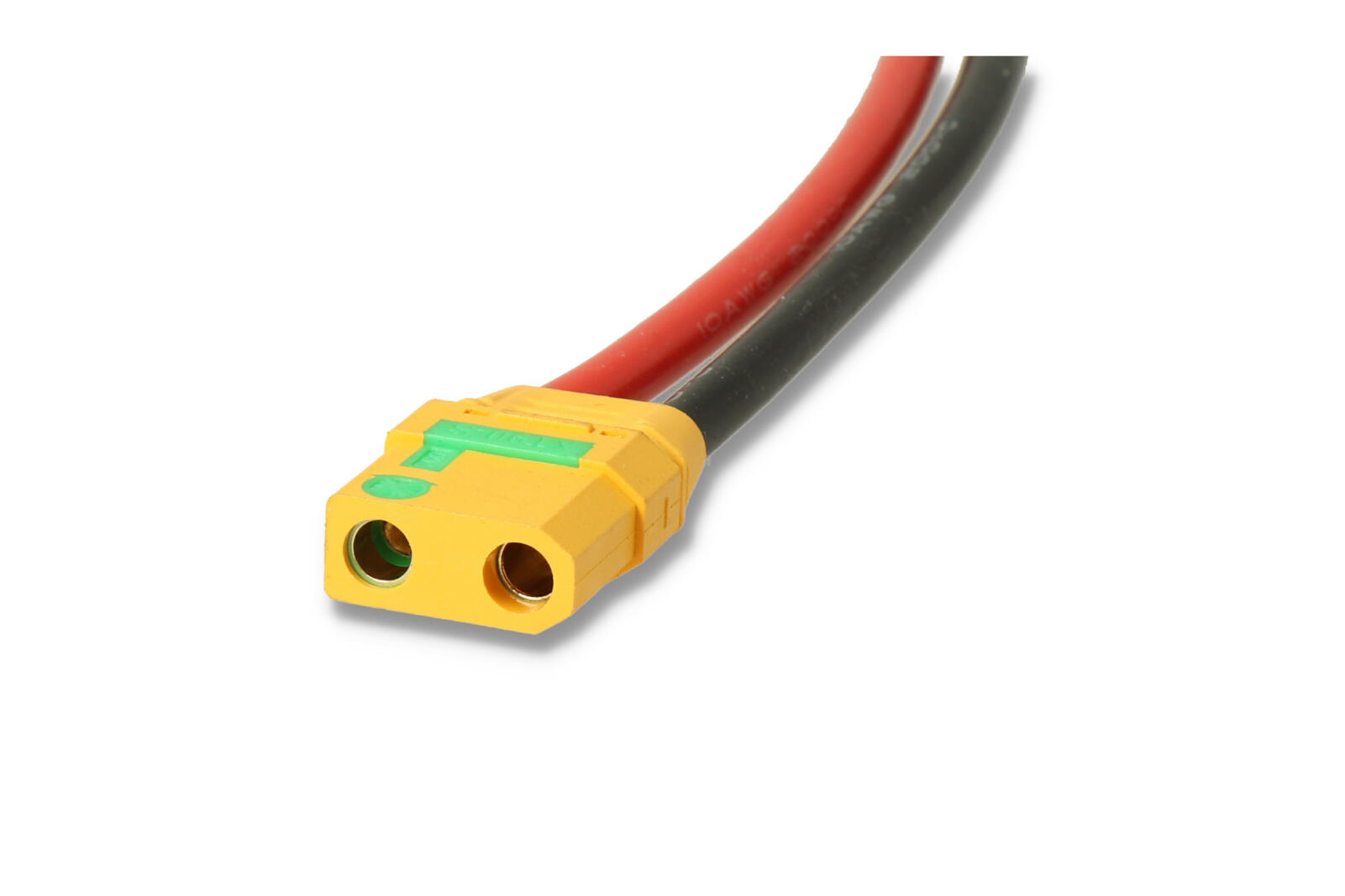

- Discharge Plug: XT90 Antispark
- Main Discharge Cable: AWG10
- Length of Main Discharge Cable: 12cm
Weight
Weight 294 Gramm Dimensions
Horizontal installation:
Width: 43,00mm
Height: 23,00mm
Rotated 90° when installed:
Width: 23,00mm
Height: 43,00mm
