SLS Quantum 2200mAh 4S1P 14,8V 65C/130C

SLS Quantum 2200mAh 4S1P 14,8V 65C/130C
Swipe
  • SLS Quantum 2200mAh 4S1P 14,8V 65C/130C
  • SLS Quantum 2200mAh 4S1P 14,8V 65C/130C
  • SLS Quantum 2200mAh 4S1P 14,8V 65C/130C
39,00 EUR
incl. VAT | excl. Shipping costs
Pcs
Delivery Time: 1-3 days*
Product no.: SLSQ22004165
compare_arrowsCompare
Do you have a question?
  • Voltage:
  • 14,8V (4S)
  • Capacity:
  • 2200mAh
  • Continous Discharge:
  • 65C
Products with similar Attributes

SLS Quantum 2200mAh 4S1P 14,8V 65C/130C

Technical Data:

  • Voltage: 14,8V
  • Configuration: 4S1P
  • Capacity: 2200mAh
  • Continuous Discharge: max. 65C* (143A)
  • Burst Discharge: max. 130C (286A)
  • Charge: max. 10C (22A)
  • Weight: approx. 255 Gramm (including Cable and Plug)
  • Dimension: approx. LxWxH 107 x 34 x 31mm

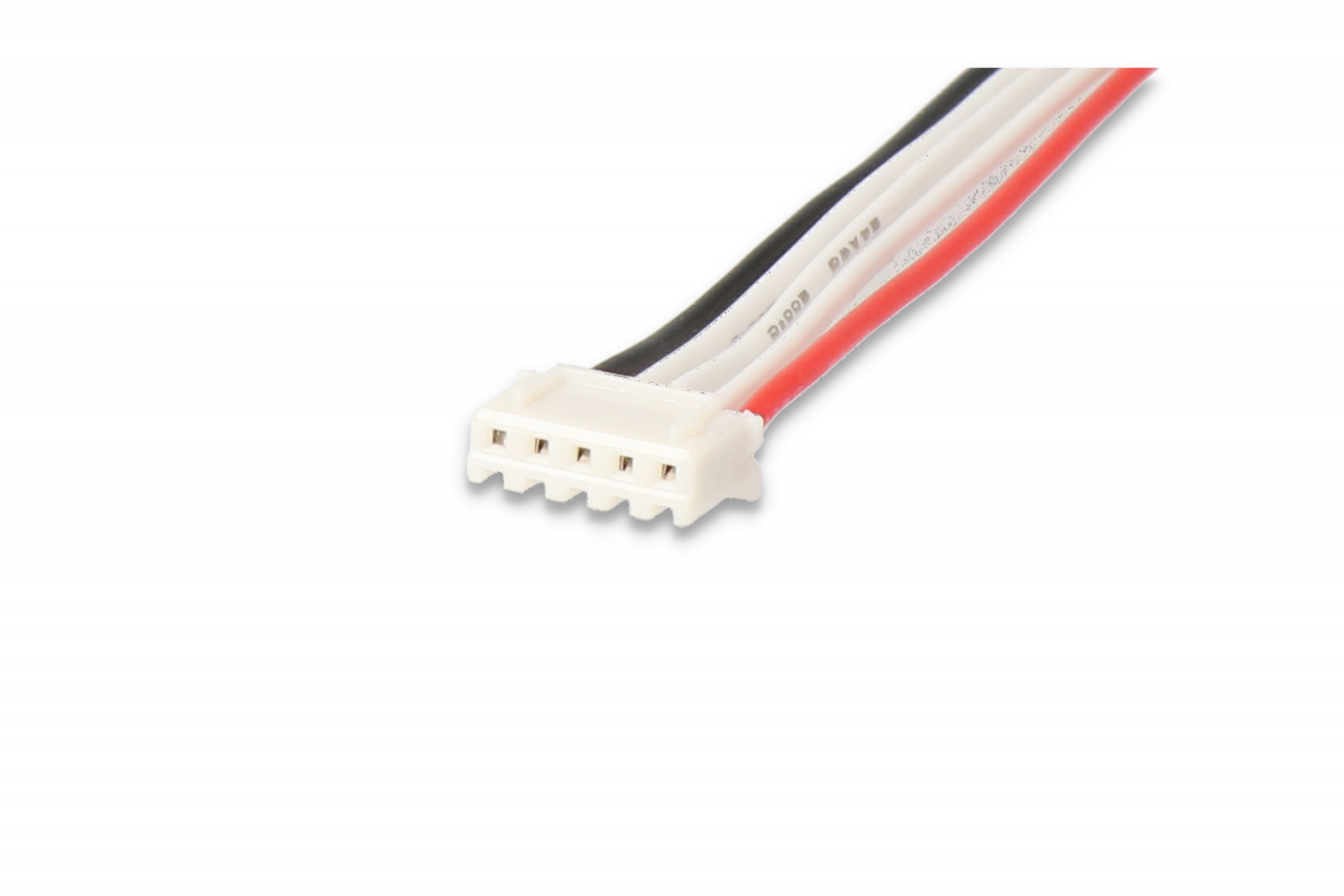

  • Balancer Plug: XH

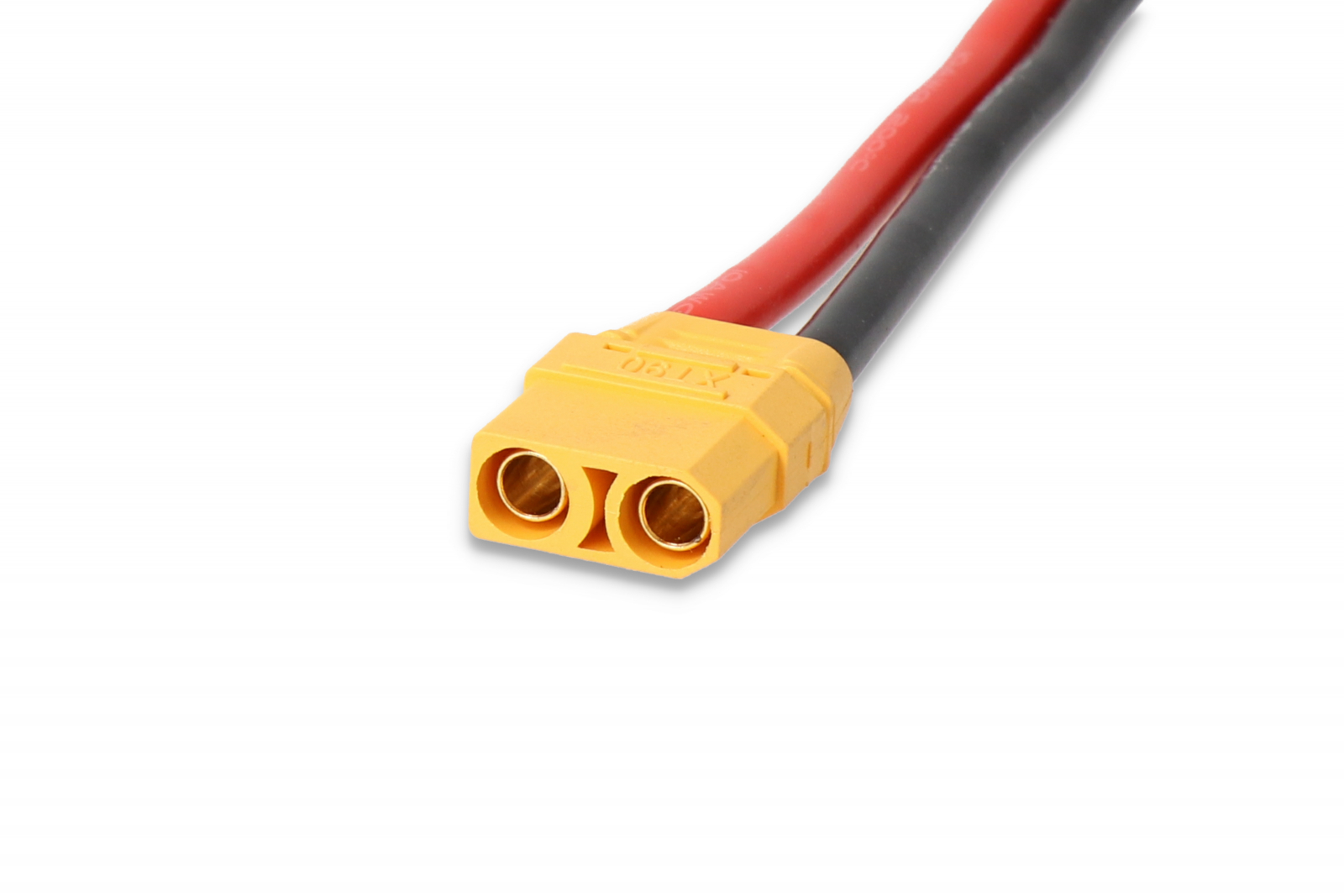

  • Discharge Plug: XT90
  • Main Discharge Cable: AWG10
  • Length of Main Discharge Cable: 15cm

Note:

(*) The cell chemistry is designed for 65C. The thickness and width of the radial high-current arresters and the contacts of the high-current cables are technically limited. So our recommendation: 65C no longer than 20 seconds.

Weight
Weight 255g
Dimensions
Horizontal installation:
Lipo Einbau liegend
Length: 107,00mm
Width: 34,00mm
Height: 31,00mm
Rotated 90° when installed:
Lipo Einbau gedreht
Length: 107,00mm
Width: 31,00mm
Height: 34,00mm

Accessories

ATTENTION!

Please observe the Safety Precautions for SLS LiPo battery packs!

Icon Fragen und Antworten

LiPo FAQ - the little "LiPo ABC"

LiPos are high-tech products. "The little LiPo ABC" gives valuable tips to enjoy your energy donors for a long time.
