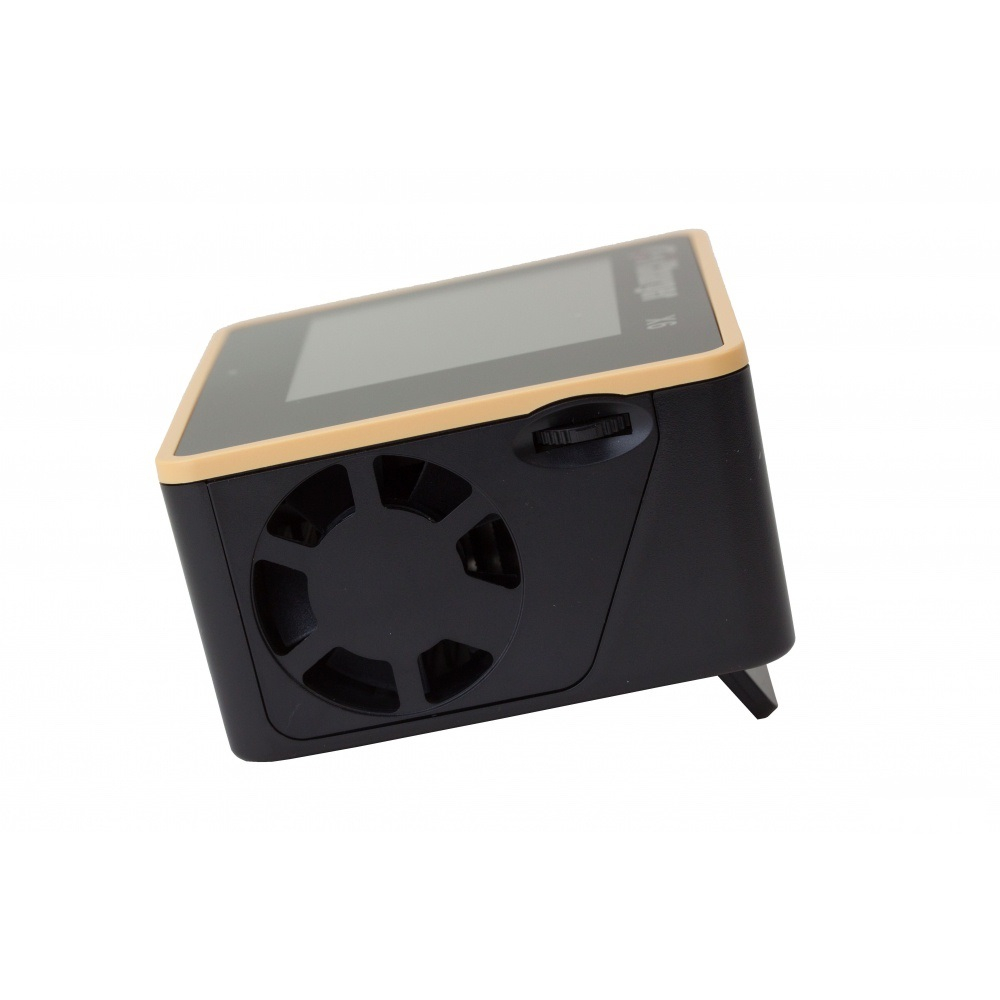

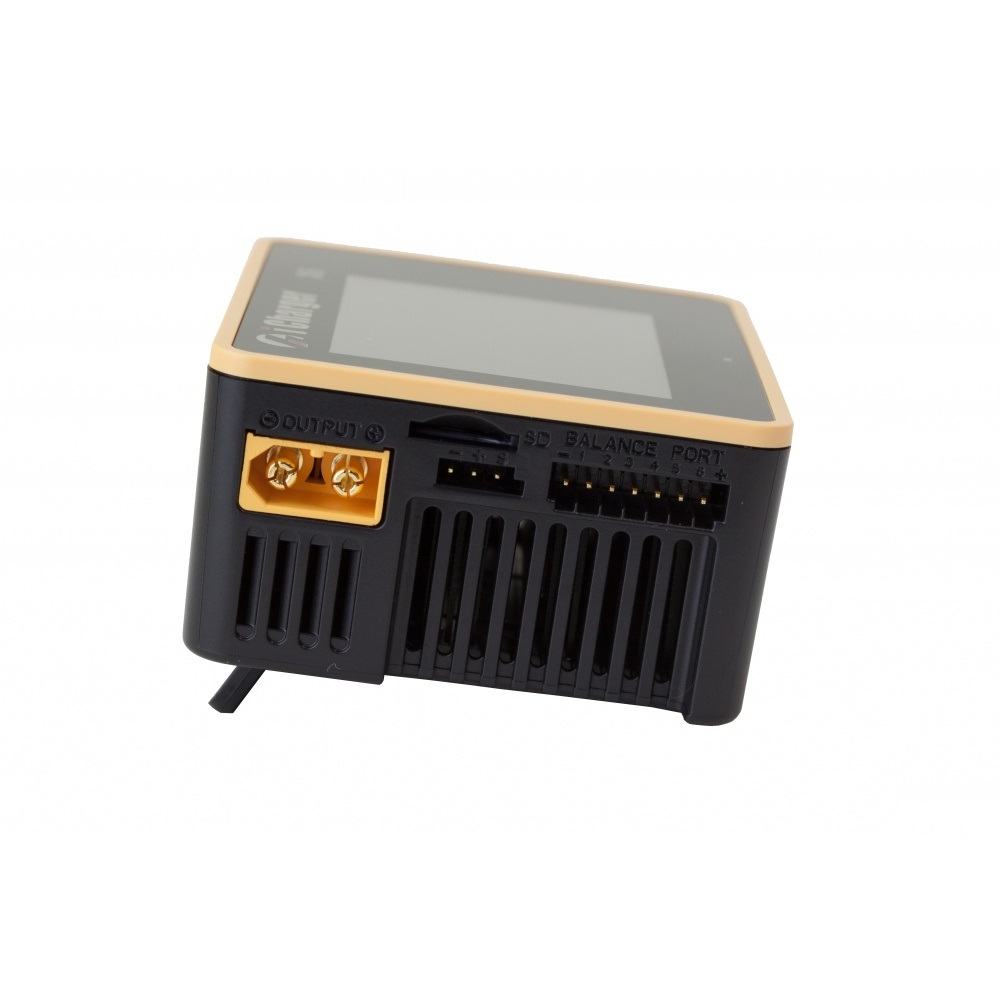

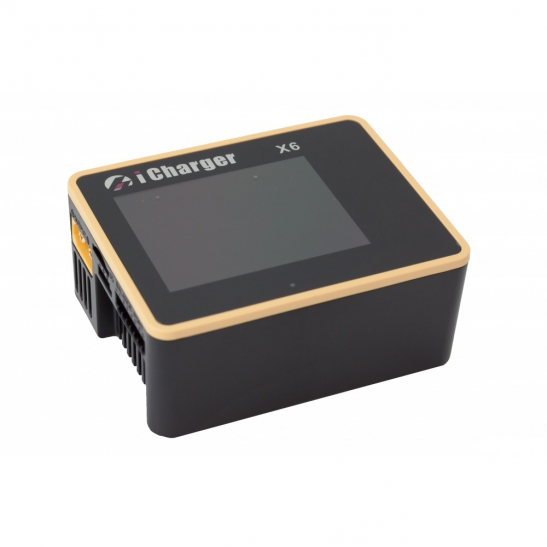

Junsi X6

Specifications:

• Microprocessor controlled
• plug-in system Charging output: XT60
• Plug-in system DC: XT60
• Plug-in system Balancer: XH
• 2.4 "IPS LCD color display - 320x240
• Supported battery types: LiIo / LiPo / LiFe / LIHV / LTO / NiZn, NiMH / NiCd, Pb
• Cell count: 1-6 LiIo / LiPo / LiFe / LIHV / LTO / NiZn, 1-16 NiMH / NiCd, 1-12 Pb (2-24V)
• Input voltage: DC 7-32 V
• Input current: <35A
• Charging power max .: 800W from approx. 23.5V input voltage
• Charging power at input voltage 12V:> 400W
• Charging current: 0.05 - 30A
• Discharge capacity max .: 30W
• Discharge current: 0.05 - 30A
• Regenerative discharging: up to 800W
• Discharge with external load max .: 900W 30V / 30A
• Balancer current: 2A per cell
• automatic fan control - 1 fan
• Micro USB port
• Micro SD slot for storing logs and data
• Dimensions: 83 × 64.5 × 37 ± 0.5mm
• Weight: 168g
• Storage of load programs and export to SD Card
• Internal resistance measurement of cells
• Servotest
• Firmware update via USB connection possible.

Delivery:

• Junsi iCharger X6
• 1x output cable 3.3 mm² with XT60 socket
• 1x input cable 3.3 mm² with XT60 socket
• Installation CD with software
