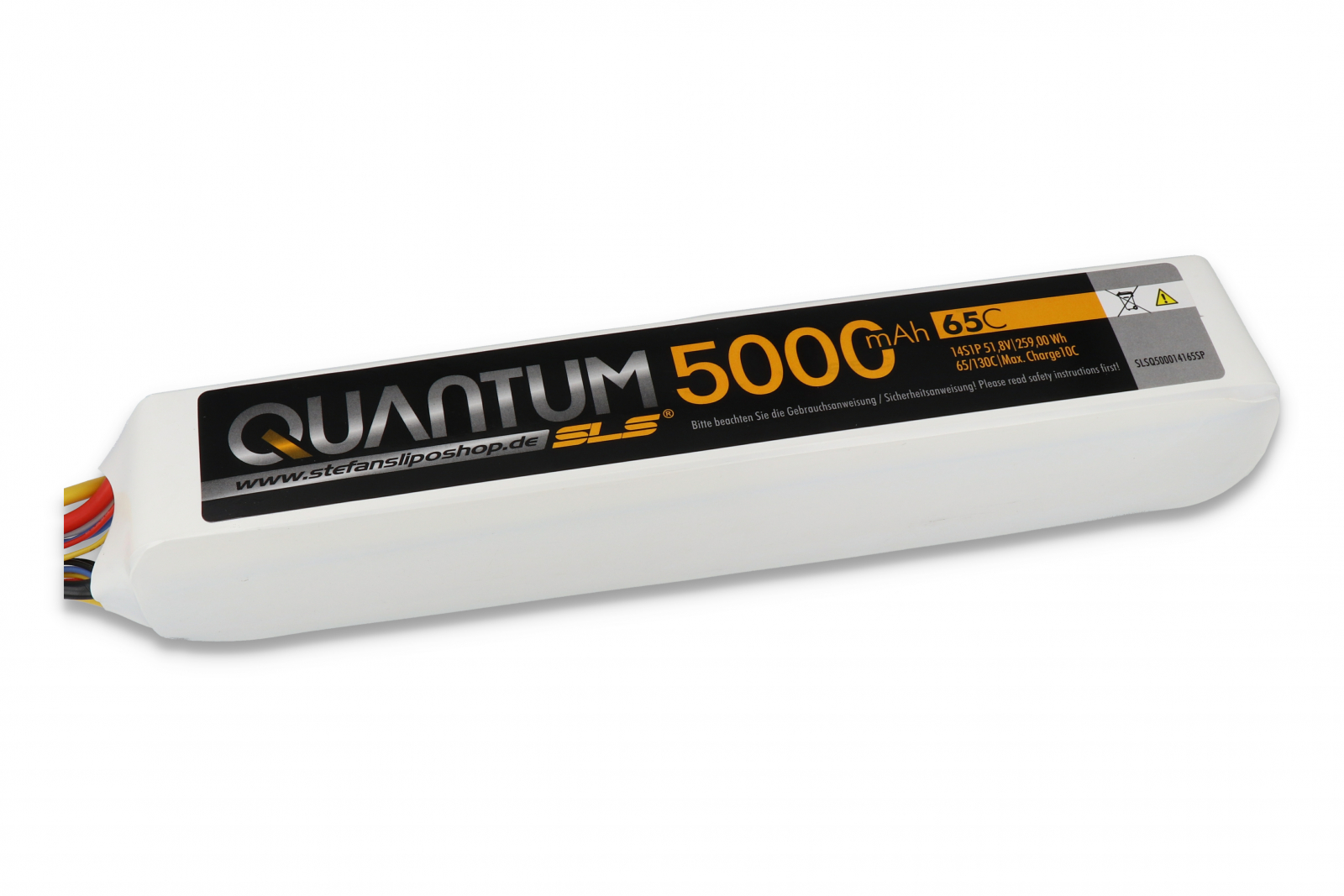

SLS Quantum 5000mAh 14S1P 51,8V 65C/130C SPLIT
Technical Data:
- Voltage: 51,8V
- Configuration: 14S1P
- Capacity: 5000mAh
- Continuous Discharge: max. 65C* (325A)
- Burst Discharge: max. 130C (650A)
- Charge: max. 10C (50A)
- Weight: approx. 1748 Gramm (including Cable and Plug)
- Dimension: approx. LxWxH 326x52x56mm

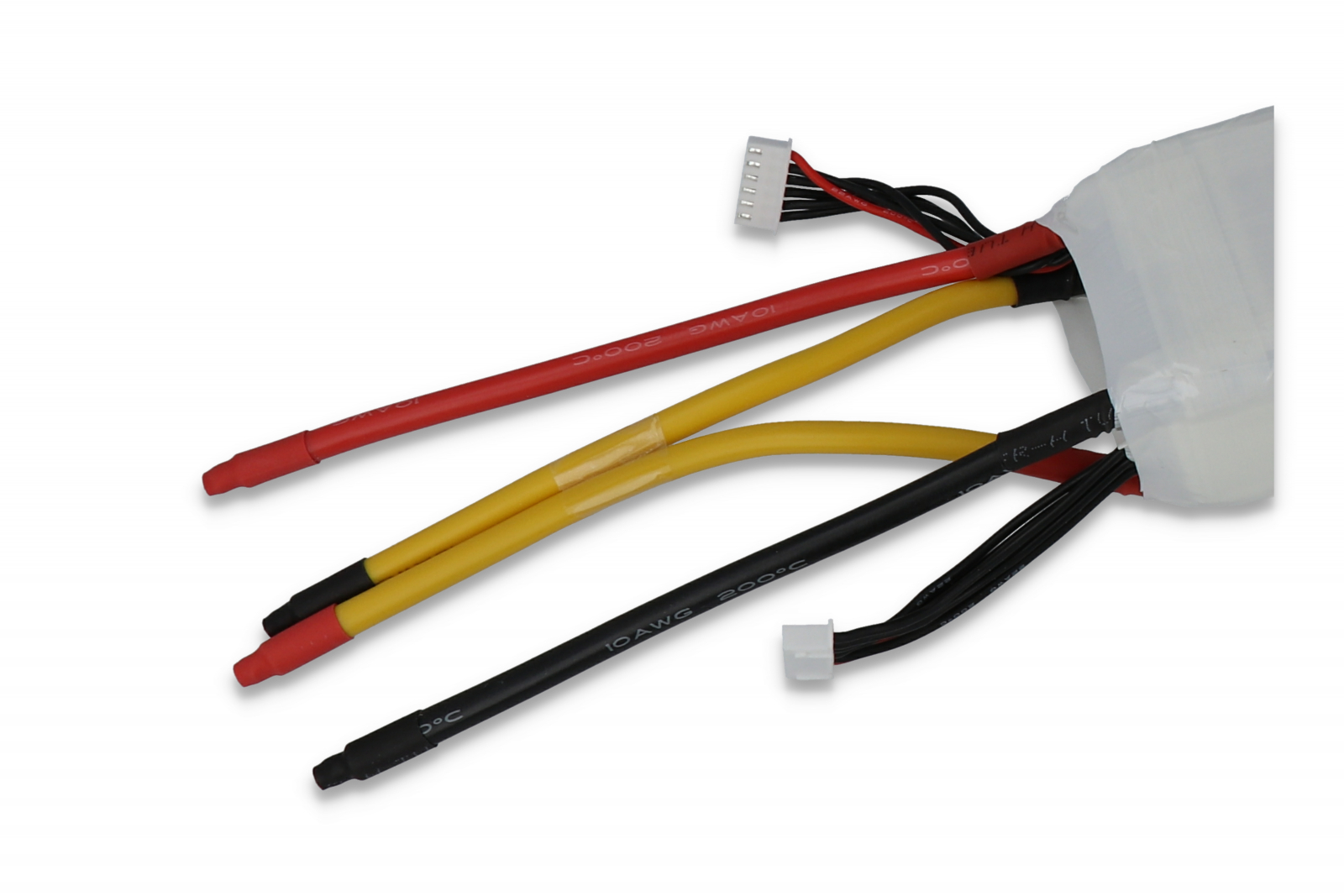

- Balancer Plug: XH
- Discharge Plug: nein
- Main Discharge Cable: AWG10
- Length of Main Discharge Cable: 12cm
Note:
(*) The cell chemistry is designed for 65C. The thickness and width of the radial high-current arresters and the contacts of the high-current cables are technically limited. So our recommendation: 65C no longer than 20 seconds.
Weight
Weight 1748g Dimensions
Horizontal installation:

Width: 52,00mm
Height: 56,00mm
Rotated 90° when installed:

Width: 56,00mm
Height: 52,00mm
Accessories
ATTENTION!
Please observe the Safety Precautions for SLS LiPo battery packs!
LiPo FAQ - the little "LiPo ABC"
LiPos are high-tech products. "The little LiPo ABC" gives valuable tips to enjoy your energy donors for a long time.
