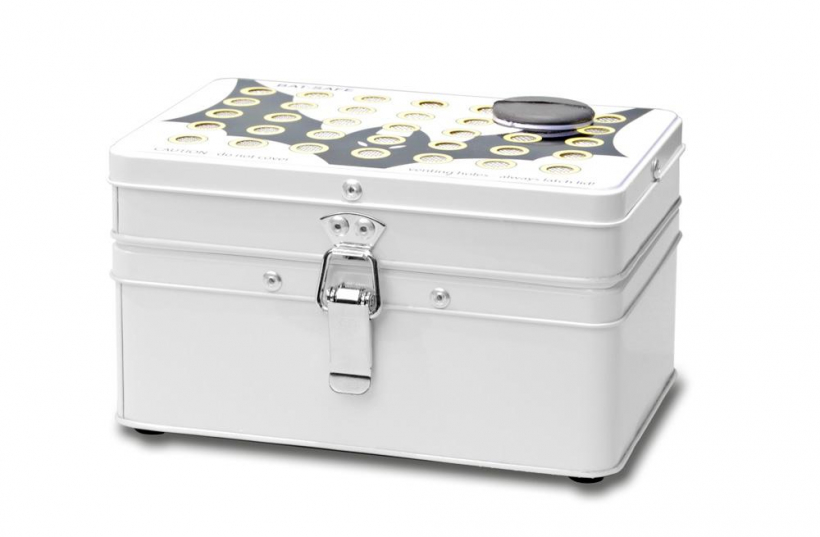

BAT-SAFE Mini Safety case

The Bat Safe is designed in such a way that the batteries can be charged and of course stored in it. The charging cables are routed to the outside through a flameproof opening. If the battery catches fire, the resulting pressure inside can escape to the outside. This is done through the upper ventilation holes, at the same time the smoke is also filtered so that no harmful substances escape to the outside. Inside the box, up to 800°C can occur in the event of a fire. Due to the special insulation of the box, the bottom and side walls heat up to a maximum of 80°. The escaping gas does not get hotter than 150°. If the batteries are charged in the box, the maximum charge size of 60Ah or 60,000mAh for a single cell should not be exceeded as a reference value.

Technical data:

• Inner dimensions: 170 x 100 x 55mm
• External dimensions: 200 x 140 x 120mm
• Max. Battery size: 2 pieces 3S (11.1 V) 2200 mAh or 50 Wh
• Weight: 750g
