Junsi 456 Duo

Junsi 456 Duo
399,90 EUR
incl. VAT | excl. Shipping costs
Delivery Time: 1-4 days fr.12.06.23*
Product no.: Junsi iCharger 456D
Do you have a question?
Due to the ElektroG2 / WEEE2, this item can only be purchased from buyers (end users) from Germany.

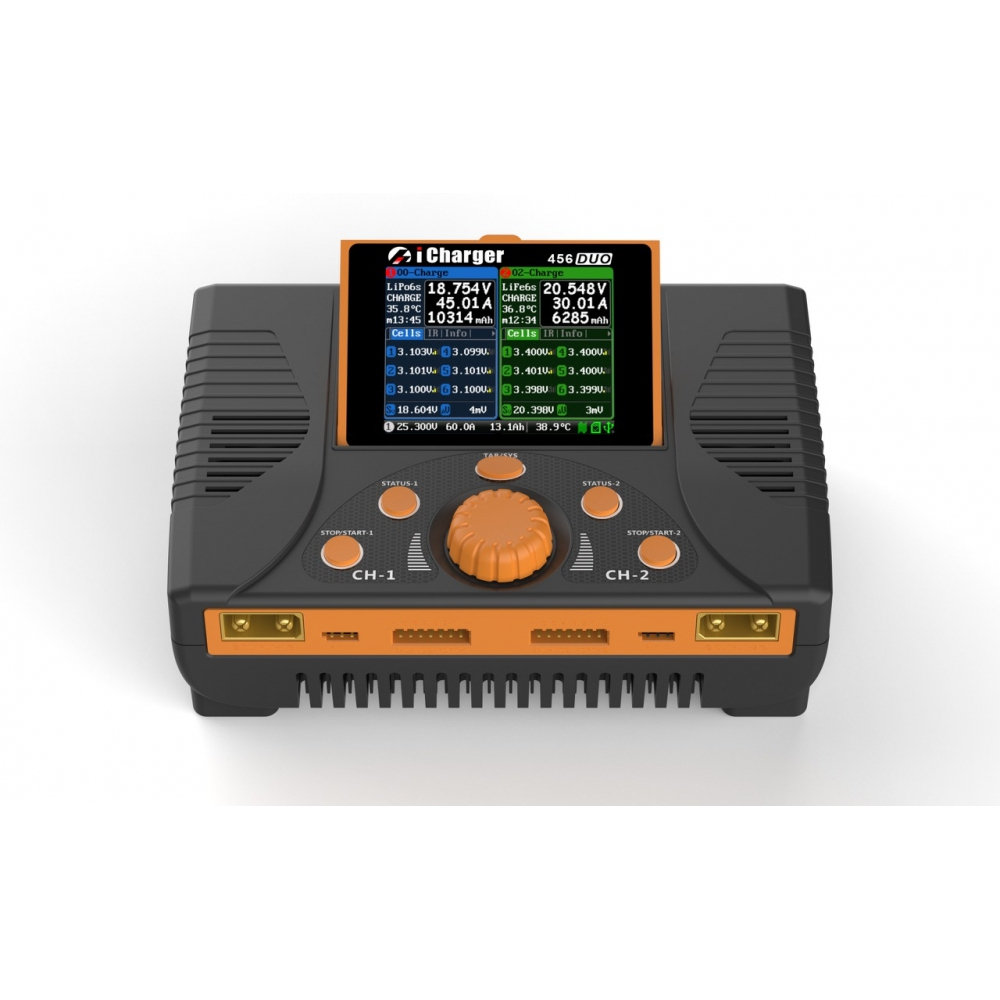

Junsi 456 Duo

Technical Specifications:

  • Input Voltage: 10V - 49V DC
  • Input Current Limit: 70A
  • Charging Power (Synchronous): Max. 2200W from 40V
  • Charging Power: Max. 1600W
  • Charging Current: Adjustable from 0.05A - 45A per output
  • Charging Current (Synchronous mode): Adjustable from 0.05A - 70A
  • Discharge Power: Max. 140W (Synchronous mode)
  • Discharge Power: 80W when discharging from a single output
  • Discharge Current: Adjustable from 0.05A - 70A during regenerative discharge
  • External High-Current Discharge: 2200W (Synchronous)
  • Integrated Balancer: For up to 2 x 8S Lixx batteries
  • Balancer Accuracy: 1mv
  • NiCd/NiMH Batteries up to 25 cells
  • Lead Acid Batteries up to 15 cells (2 - 30V)
  • Output on Battery Side: XT90
  • Balancer Balancing Current: 2A per output
  • Memory: Micro SD card
  • 2.8" IPS LCD Display
  • Dimensions: 171mm x 118mm x 57mm
  • USB-C Port (3A) for external devices or software updates
  • Weight: 930g
  • Menu Navigation: English/German/Chinese

  • Scope of delivery: Charger, 2x XT90 socket, EC8 cable for self-assembly (counterpart connection for the charger)
