ISDT SMART CHARGER Q6 Retro

The iSDT Q6 Retro charger is a powerful, compact charger and the direct, performance-optimized successor to the popular Q6.

The Q6 Retro supports the BattAir System. The data from the BAPs (BattAirPlugs) is transmitted wirelessly to the Q6 Retro.

1-6s LiXx cells can be charged with up to 16A charging current (total max. 350W!). The extremely powerful balancer delivers up to 1.5A per cell, ensuring your batteries are optimally maintained and maximum performance is guaranteed.

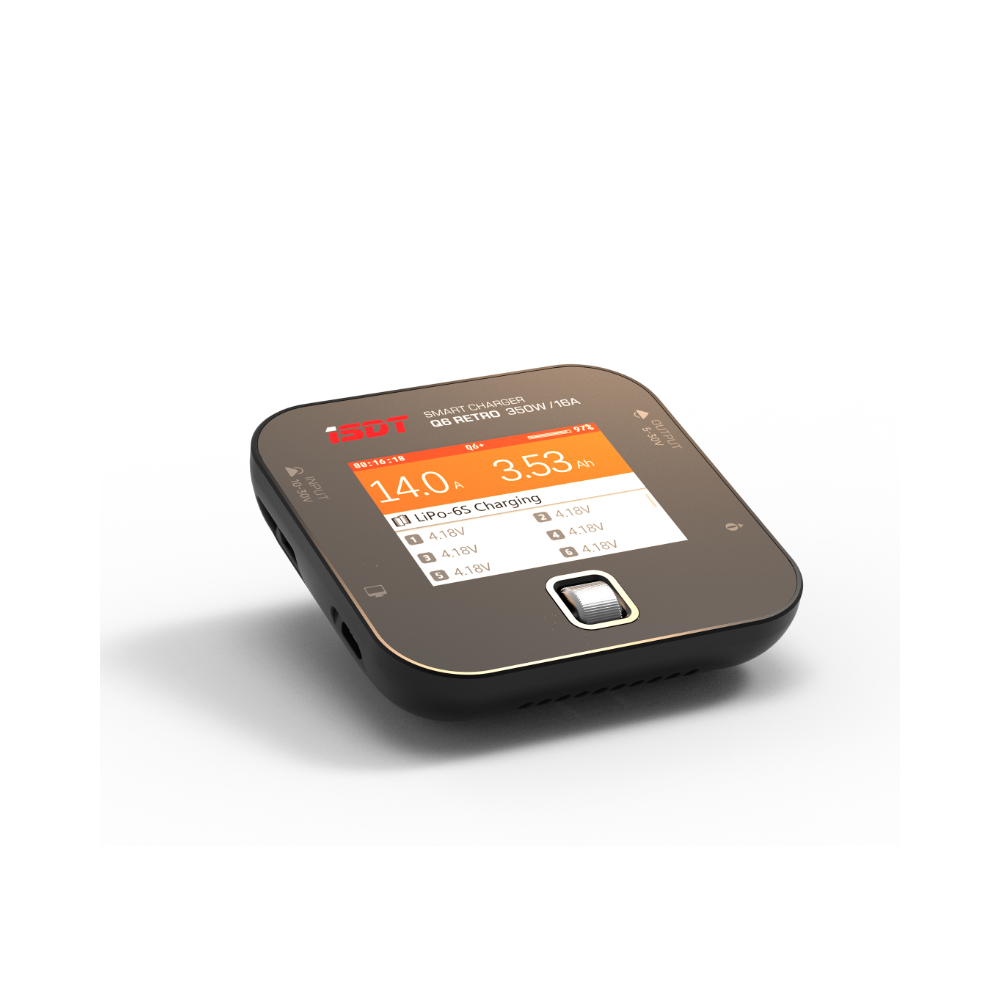

The easy-to-read2.4" IPS display is clear even in direct sunlight and simplifies operation. It is intuitive and easy to use with a single dial in the center.

The USB-C port can be used for software updates.

Thanks to its compact design of 80 x 80 x 33.5 mm and a weight of only 190 g, the Q6 Retro is perfect for on-the-go use.

Technical Specifications:

• Adjustable charging current per output: 0.1-16A
• Balancer balancing current per output: 1.5A
• Input voltage: 10-30V
• Max. discharge power: 10W
• Max. number of NiCd/NiMH batteries: 16
• Max. charging current: 16A
• Max. voltage for lead-acid batteries: 24V
• Max. power: 350W
• Max. number of LiPo cells: 6
• Max. number of LiHv cells: 6
• Length (mm): 80
• Integrated power supply: No
• Input connector type: XT60
• Output connector type: XT60
